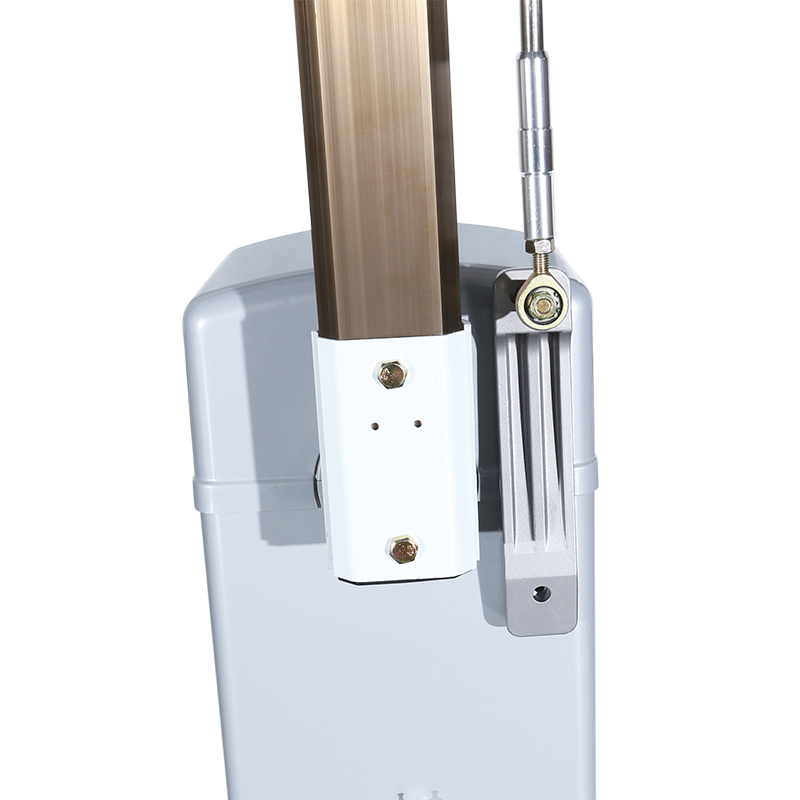

Yellow Color 6m Telescopic Straight Arm Barrier Gate DC24V Brushless Motor Shenzhen ISO Approved
Barrier Gate Brief Introduction
The product consists of four parts: cabinet, transmission mechanism, control unit, and boom. It distinguishes between left-installed and right-installed, and it is used in parking lot entrance and exit control systems.
This product is divided into three types: barrier gate with straight boom, barrier gate with folding boom, and barrier gate with fence boom.
Parking Barrier Gate Functions & Features
1. DC frequency conversion motor drive, the use of connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life of up to 4.5 million times or more, spring life of up to 500,000 times.
2. The whole series is equipped with the function of rebound in case of obstruction as standard, the barrier gate arm will return automatically in case of obstruction in the process of descending.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can power supply for external radar.
4. Support RS485 communication or RS485 folio online.
5. Optional bluetooth module, convenient to debug anti-barrier door through small program.
6. Large LCD display, Chinese visualization menu, convenient for function selection and debugging.
7. Left and right are interchangeable.
8. 1.5~6 seconds adjustable speed of opening and closing.
Parking Barrier Gate Technical Data
| Item | Specification |
| Working temperature (motor) | -35℃ ~ +70℃ |
| Power supply input voltage | AC100~265V |
| Controller input voltage | DC24V±10%, 10A |
| Motor power | 240W MAX |
| Relative Humidity | 30%~80%, No condensation |
| Distance of remote control | L≥30M |
Maintenance
1. Keep the barrier gate clean.
2. Check the joints every month in case of any loose parts.
3. Check the balance status of spring after the barrier gate running 300,000 times, and readjust the balance. And change new springs after running 500,000 times (or 12 months), to avoid spring breaking due to excessive fatigue.
4. Check the easily worn-out parts every half year and renew it.
5. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weather.
